200W Semi-Flexi Solar Panel Black Rear Exit Kit
200W semi-flexible black solar panel kit with rear exit cabling, ideal for power generation in small motorhomes, caravans and boats.
more…
✓ Available to order now!
£528.00
£440 excl. VAT
Order before 2pm today (GMT) for same day dispatch
- see more details on delivery options
- Description
- FAQ
- Technical Specification
- Reviews (0)
Welcome to our black 200W semi-flexible rear exit solar panel kit. This kit will give you everything you need to install the panel in your desired position.
This panel, like the rest of our SolarGo2 semi-flexible panels is leading the way in efficiency and is built to last with:
- Strong ETFE diamond surface and a polymer composite material back face.
- A-grade solar cells with 9 buzz bars giving you superior and enhanced efficiency, lower stress, and lower degradation.
- Rear exit cable (needs a 40mm to 45mm hole for the cable to go through the roof).
- 5 metres of high-end 2.5mm² UV stable DC cable.
This high specification semi-flexible solar panel ensures the best possible transmission of power from panel to controller. The controller included with this kit is a Victron MPPT controller, one of the best and efficient controllers you can get today.

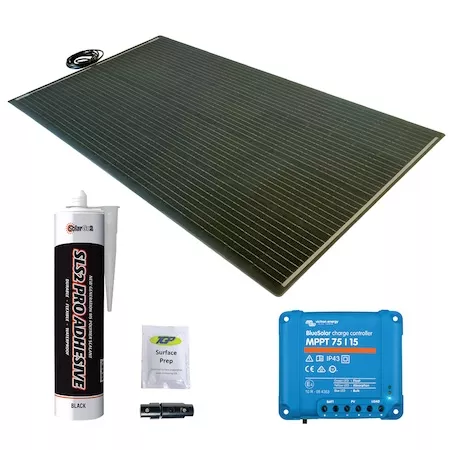

All kits include the panel, MPPT solar controller, fuse, and black bonding glue.The SolarGo2 200W semi-flexi panel is designed to be outside and work in all weather conditions, providing you with variable amounts of power throughout the year depending on the weather conditions and the time of year.
As an example, we would say it will give you an average of around 68.2Ah (1200Wh) per day in the summer in the UK and 9.01Ah (160Wh) per day in the winter.
Unsure if this is the correct panel for you? Call us on 01684 607002 for some friendly help and advice.
How can I tell if my panel is working?
You will need to have access to a DVM (digital voltmeter) that can measure DC voltages up to 100V or higher and DC Amps up to 10A. Then with the wires from the panel (not connected to anything else) connect the red probe to the red wire and the black probe to the black wire to test the voltage coming from the solar panel.
This should give a reading of between 14 and 26 Volts DC depending on light conditions at the time. Then set your DVM to test the current, i.e. amps, coming from the panel and connect the probes as before. This may involve moving one of the probes on the DVM.
The results will vary depending on the panel, but any positive reading indicates that your panel is working. Both tests are basically short circuiting the panel. Check your solar panel instructions for more help on this.
Do I need to connect the supplied cable to my solar panel?
All Our SolarGo2 panels come with a pre-installed cable. This cable is 5m long and is designed to get the very best power transfer from your panel to the controller. This is normally plenty of cable for your install, but more is available on our web site.
What is the difference between mono and poly-crystalline?
The main difference between the two technologies is the type of silicon used in the solar panels:
Mono-crystalline solar panels have solar cells made from a single crystal of silicon, this is still considered the best of the current solar panels.
Poly-crystalline solar panels have solar cells made from many silicon fragments melted together. And although this has improved over the years with technology it is still not as good as mono-crystalline. It is more of a ‘best of the rest’ panel.
My solar panel has been damaged, and the panel looks like water has got inside. The solar panel is still creating power so can I leave it?
Your solar panel will need replacing ASAP. The area letting in water, will eventually let water onto the silicon and as soon as we have a frost the water will freeze and break up the silicon inside the panel stopping the panel from working. This can also create a short circuit that could make the installed solar controller fail, costing you more to fix the problem.
Are my panels weatherproof?
Yes, all SolarGo2 panels are designed to be left outside all year-round rain or shine. However, they are not designed to work underwater i.e., submerged.
How long should my panel last?
Our SolarGo2 Flexi panels are designed to last. We give you a 1-year product guarantee and a 10-year cell guarantee.
| Electrical Characteristics | |
| Type | Monocrystalline (A Grade, 158.75mm, High efficiency) |
| Peak Power (Pmax) | 200Wp |
| Power tolerance range (%) | ±3% |
| Open circuit voltage / Voc (V) | TBA |
| Max. power voltage / Vmp (V) | TBA |
| Short circuit current / Isc (A) | TBA |
| Max power current / Imp (A) | TBA |
| Maximum System Voltage (V) | 200V DC |
| Above Specification at standard test conditions(STC):1000W/㎡, cell temperature 25°C, AM1.5 | |
| Panel Info | |
| Part number | SPF200R |
| Power | 200Wp |
| Cable type | 2.5mm twin core Red / Black (UV stable) |
| Cable length | 5m |
| Frame Material | N/A |
| Face material | ETFE |
| Dimensions (mm) | 1410 x 710 x 3mm |
| Performance UK weather (weather dependant) | |
| Average expected winter | TBA |
| Average expected Summer | TBA |
| Warranty | |
| Performance (of cells | 20 years (at 80% of day 1 performance) |
| Product construction | 3 Years |
Brochure
View: SolarGo2 200W Semi-Flexi Solar Panel Black Rear Exit Kit Brochure (PDF)
Download: SolarGo2 200W Semi-Flexi Solar Panel Black Rear Exit Kit Brochure (PDF)
Datasheet
View: SolarGo2 200W Semi-Flexi Solar Panel Black Rear Exit Kit Datasheet (PDF)
Download: SolarGo2 200W Semi-Flexi Solar Panel Black Rear Exit Kit Datasheet (PDF)
Instructions
View: SolarGo2 200W Semi-Flexi Solar Panel Black Rear Exit Kit Instructions (PDF)
Download: SolarGo2 200W Semi-Flexi Solar Panel Black Rear Exit Kit Instructions (PDF)
