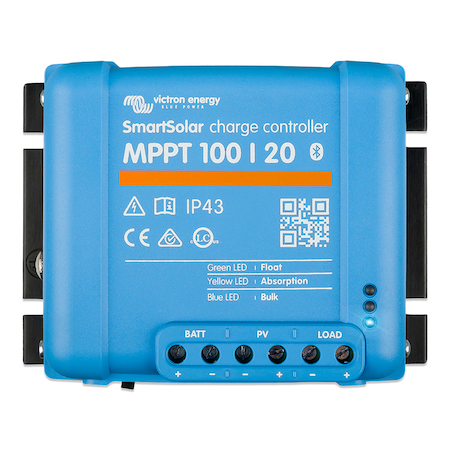

Victron Energy MPPT Smart Controller 20A
BLUETOOTH

MPPT Smart Controller 20A

MPPT Smart Controller 20A
more…

✓ Available to order now!

£120.00
£100 excl. VAT


Order before 2pm today (GMT) for same day dispatch
- see more details on delivery options

  • Description
  • Technical Specification
  • Reviews (0)

Here at SolarGo2 we believe that the Victron MPPT Charge Controllers are one of the very best you can use with your solar panels.

Not only are they very easy to install, but they also have some great add on’s and come with a 5 year warranty as standard.

The Victron Blue Solar Charge Controllers support a PV input with a maximum open circuit voltage of 75V and have a maximum output of 20A. They work with and will automatically recognise 12V, 24V, 48V battery systems too.

Highlights:
  • Ultra fast Maximum Power Point Tracking (MPPT)
  • 6 mm² screw terminals
  • Up to 98% efficient
  • Load output, connect ≤20A loads to be automatically disconnected/reconnected by the charge controller to stop the battery being over discharged
  • BatteryLife: intelligent battery management algorithm, designed to increase the battery's life (see data sheet for details)
  • Resin encapsulated electronics, added protection from the environment
  • Automatic battery voltage recognition, no need to configure for 12V/24V/48V systems
  • 5 years warranty
Victron Energy MPPT Smart Controller 20A
Electrical Characteristics
Battery voltage (auto select) 12/24/48V
Rated charge current 20A
Nominal PV power, 12V290W
Nominal PV power, 24V 580W
Nominal PV power, 48V 1160W
Max. PV short circuit current 20A
Automatic load disconnect Yes
Max. PV open circuit voltage 100V
Self-consumption 25 / 15 / 10mA
Charge voltage 'absorption' 14.4V / 28.8V / 57.6V (adjustable)
Charge voltage 'float' 13.8V / 27.6V / 55.2V (adjustable)
Charge algorithm multi-stage adaptive
Temperature compensation -16 mV / °C resp. -32 mV / °C
Max. continuous load current 20A / 20A / 1A
Low voltage load disconnect 11.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V or Battery Life algorithm
Low voltage load reconnect 13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery Life algorithm
Protection Output short circuit / Over temperature
Operating temperature 30 to +60°C (full rated output up to 40°C)
Humidity 95%, non-condensing
Data communication port VE.Direct
Data communication built-in Bluetooth
Enclosure
Colour Blue
Power terminals 6 mm² / AWG10
Protection category IP43 (electronic components), IP22 (connection area)
Weight 0.65 kg
Dimensions (h x w x d) 100 x 130 x 65 mm
Warranty
Product construction 5 Years


Brochure


View: Victron Energy MPPT Smart Controller 20A Brochure (PDF)

Download: Victron Energy MPPT Smart Controller 20A Brochure (PDF)



Datasheet


View: Victron Energy MPPT Smart Controller 20A Datasheet (PDF)

Download: Victron Energy MPPT Smart Controller 20A Datasheet (PDF)



Instructions


View: Victron Energy MPPT Smart Controller 20A Instructions (PDF)

Download: Victron Energy MPPT Smart Controller 20A Instructions (PDF)
