160W rigid black solar panel, ideal for power generation in small motorhomes, caravans and boats.
✓ Available to order now!
Order before 2pm today (GMT) for same day dispatch
- see more details on delivery options
Welcome to our 160W black framed solar panel roof kit. This kit will give you everything you need to install the panel in your desired position. You also have 2 options for the brackets included with the kit

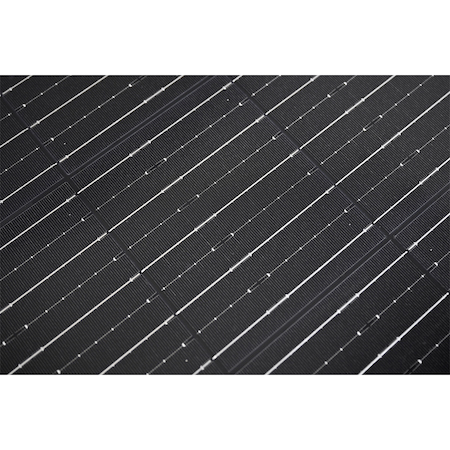

The panel, like the rest of our SolarGo2 rigid panels is leading the way in efficiency and is built to last with: Strong, anodised black aluminium full frame structure. The latest generation A-grade mono crystalline solar cells with 9 buzz bars giving you superior and enhanced efficiency, lower stress, and lower degradation.
Tough, low iron, high light transmission glass front. 5 metres of high-end 2.5mm² UV stable DC cable. This high specification ensures the best possible transmission of power from panel to controller. The controller included with this kit is a Victron MPPT controller, one of the best and efficient controllers you can get today.

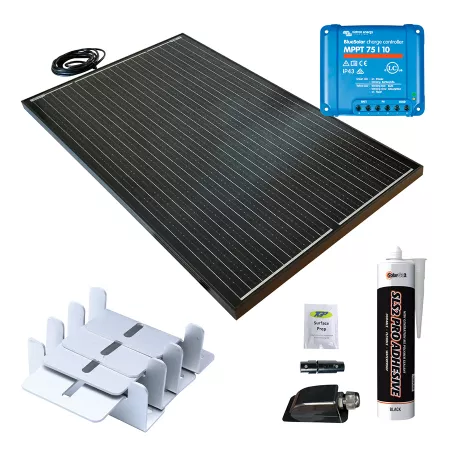

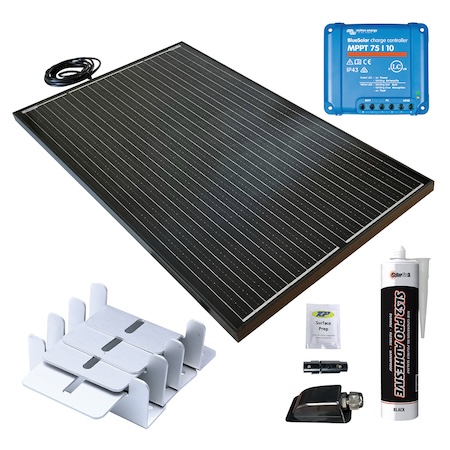

All kits include the panel, Victron MPPT solar controller, gland, fuse, bonding glue and your choice of panel fixing:
Option 1: Z brackets
Offering maximum flexibility, Z brackets can be screwed or bonded to the mounting surface, with the panel bolted to the brackets. Ideal for shed roofs, boats, caravans, motorhomes etc.
Option 2: Low profile aero mounts
This is the option most people go for, not only for its fantastic looks, as they are made in a panel matching black aluminium but the ease of panel removal if needed. The low profile aero mounts are bonded to the surface with the panel attached and held firm by the screwed in metal end caps. Giving you a very sleek final install.
The SolarGo2 160W black panel is designed to work in all weather conditions, providing you with variable amounts of power throughout the year depending on the weather conditions and the time of year.
As an example, we would say it will give you an average of around 48.48Ah (960Wh) per day in the summer in the UK and 6.46Ah (128Wh) per day in the winter. This panel will require a charge controller if being connected to a 12v battery.
Unsure if this is the correct panel for you? Call us on 01684 607002 for some friendly help and advice.
You will need to have access to a DVM (digital voltmeter) that can measure DC voltages up to 100V or higher and DC Amps up to 10A. Then with the wires from the panel (not connected to anything else) connect the red probe to the red wire and the black probe to the black wire to test the voltage coming from the solar panel.
This should give a reading of between 14 and 26 Volts DC depending on light conditions at the time. Then set your DVM to test the current, i.e. amps, coming from the panel and connect the probes as before. This may involve moving one of the probes on the DVM.
The results will vary depending on the panel, but any positive reading indicates that your panel is working. Both tests are basically short circuiting the panel. Check your solar panel instructions for more help on this.
All Our SolarGo2 panels come with a pre-installed cable. This cable is 5m long and is designed to get the very best power transfer from your panel to the controller. This is normally plenty of cable for your install, but more is available on our web site.
The main difference between the two technologies is the type of silicon used in the solar panels:
Mono-crystalline solar panels have solar cells made from a single crystal of silicon, this is still considered the best of the current solar panels.
Poly-crystalline solar panels have solar cells made from many silicon fragments melted together. And although this has improved over the years with technology it is still not as good as mono-crystalline. It is more of a ‘best of the rest’ panel.
Your solar panel will need replacing ASAP. The cracked glass will let water onto the silicon and as soon as we have a frost the water will freeze and break up the silicon inside the panel stopping the panel from working. This can also create a short circuit that could make the installed solar controller fail, costing you more to fix the problem.
Yes, all SolarGo2 panels are designed to be left outside all year-round rain or shine. However, they are not designed to work underwater i.e., submerged.
Our SolarGo2 Flexi panels are designed to last. We give you a 1-year product guarantee and a 20-year cell guarantee.
|Type||Monocrystalline (A Grade, 158.75mm, High efficiency)|
|Peak power (Pmax)||160Wp|
|Power tolerance range (%)||±3%|
|Open circuit voltage / Voc (V)||23.76v DC|
|Max. power voltage / Vmp (V)||19.8v DC|
|Short circuit current / Isc (A)||8.73A|
|Max power current / Imp (A)||8.08A|
|Maximum System Voltage (V)||1000V DC|
|Above Specification at standard test conditions(STC):1000W/㎡, cell temperature 25°C, AM1.5|
|Cable type||2.5mm twin core Red / Black (UV stable)|
|Face material||High light transmission, Low iron glass, 3.2mm thick|
|Dimensions (mm)||1215 x 680 x 35mm|
|Performance UK weather (weather dependant)|
|Average expected winter||≈ 6.46Ah (128Wh) per day (0.8h)|
|Average expected Summer||≈ 48.48Ah (960Wh) per day (6h)|
|Performance (of cells||20 years (at 80% of day 1 performance)|
|Product construction||10 Years|
View: SolarGo2 160W Solar Panel Black Kit Instructions (PDF)
Download: SolarGo2 160W Solar Panel Black Kit Instructions (PDF)
